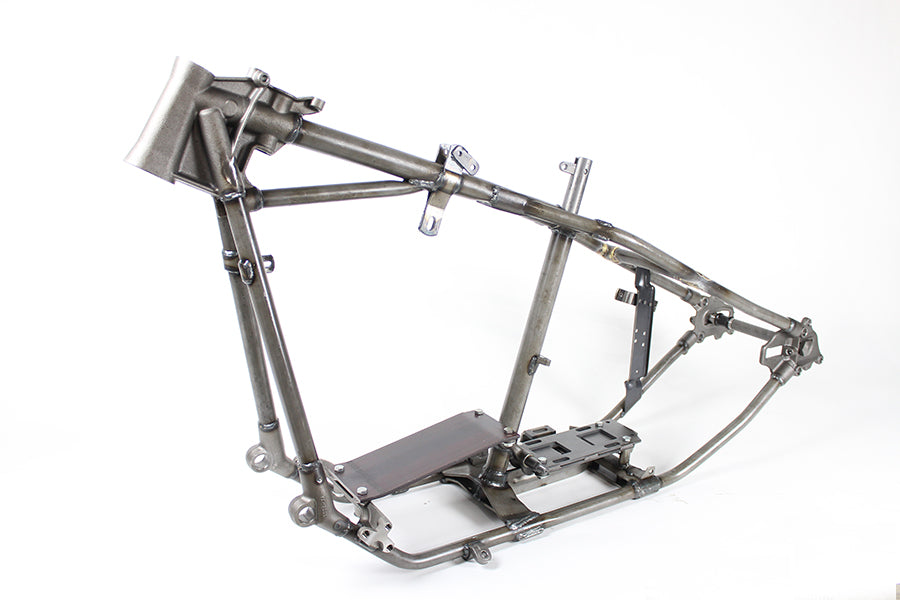

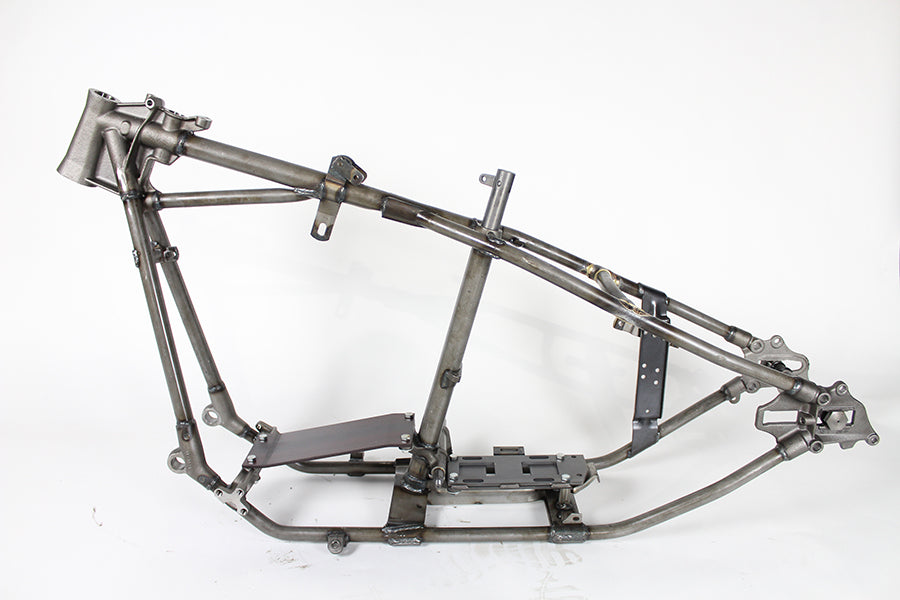

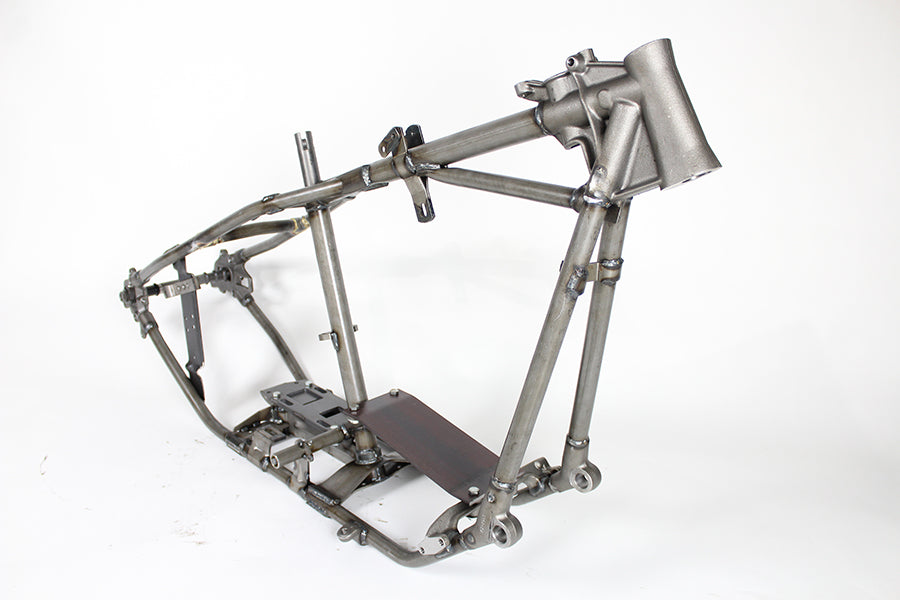

Replica "HM" 30° Rake Frame For Harley-Davidson Knucklehead 1946-1947
$2,443.19
Skip to product information

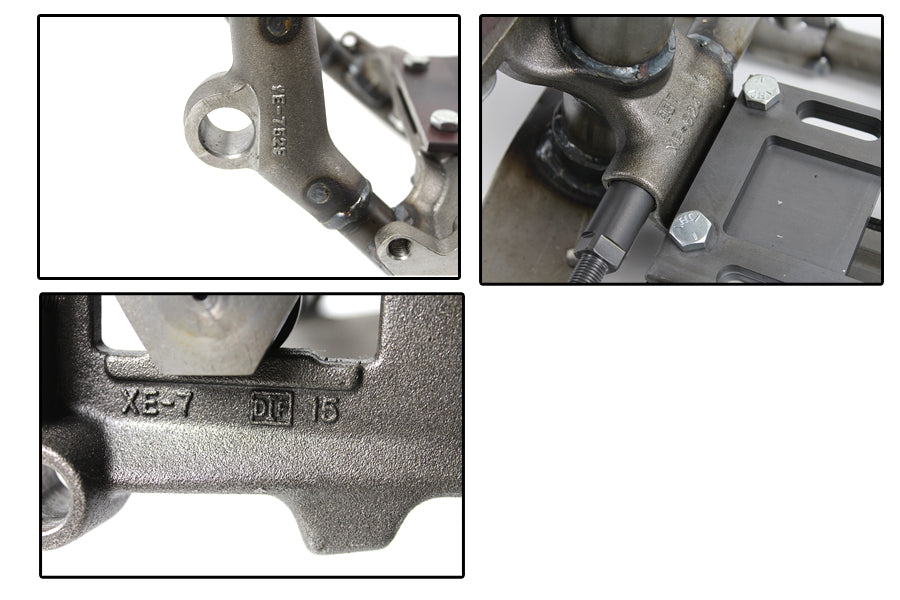

- Knucklehead frame is an authentic reproduction of the factory style bull neck frames, with numbered forgings, seat post junction, rear motor mount, front motor mount and rear axle plates
- Forged parts included are the neck, front and rear motor mounts, side car loops, yoke and rear axle plates
- The 30° neck angle will accept offset springer forks
- Top cross member across rear legs is brazed as on original frames
- Seat post is included
- Seat post bushings, mechanical brake cross shaft bushings, correct tool box mount, and grease fittings are installed
- Manufacturer's Statement of Origin is supplied
- Neck cups available separatley
- Seat post and cross shaft bushings may require further reaming for proper fit
- Frames will not be accepted for return (RGA)
- The tool box mount is welded to the frame
- No serial numbers stamped on frame
- Fits:
- EL late 1946-early 1947
- FL late 1946-early 1947
- U late 1946-early 1947
