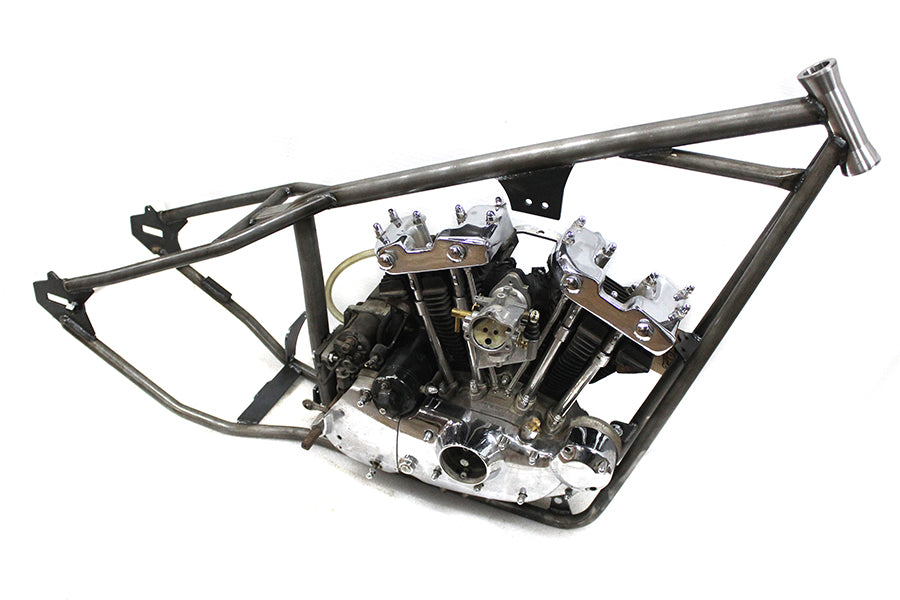

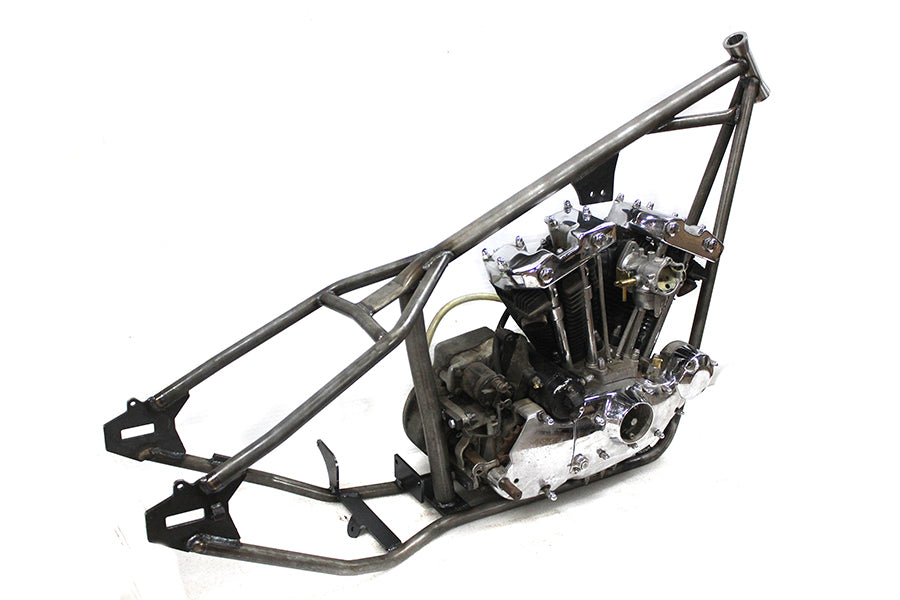

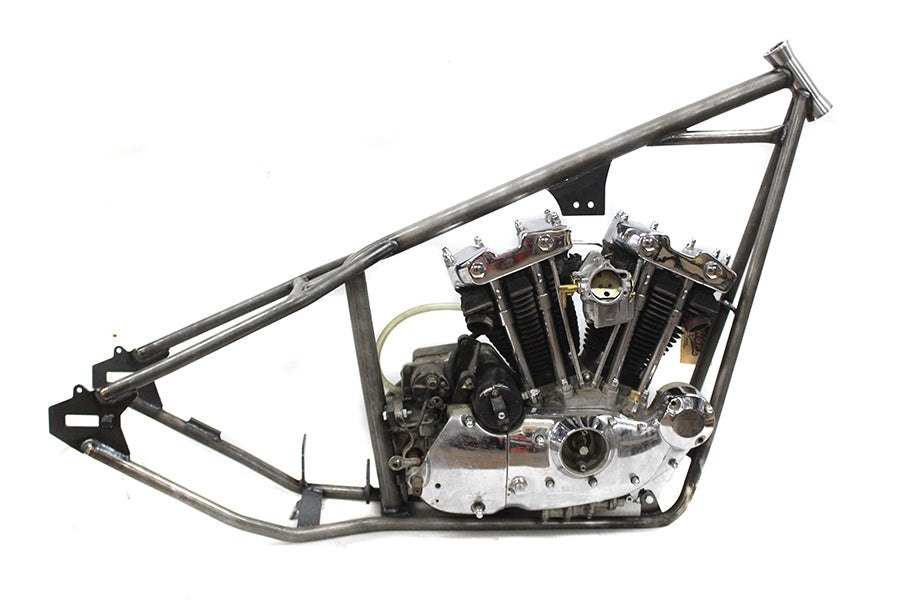

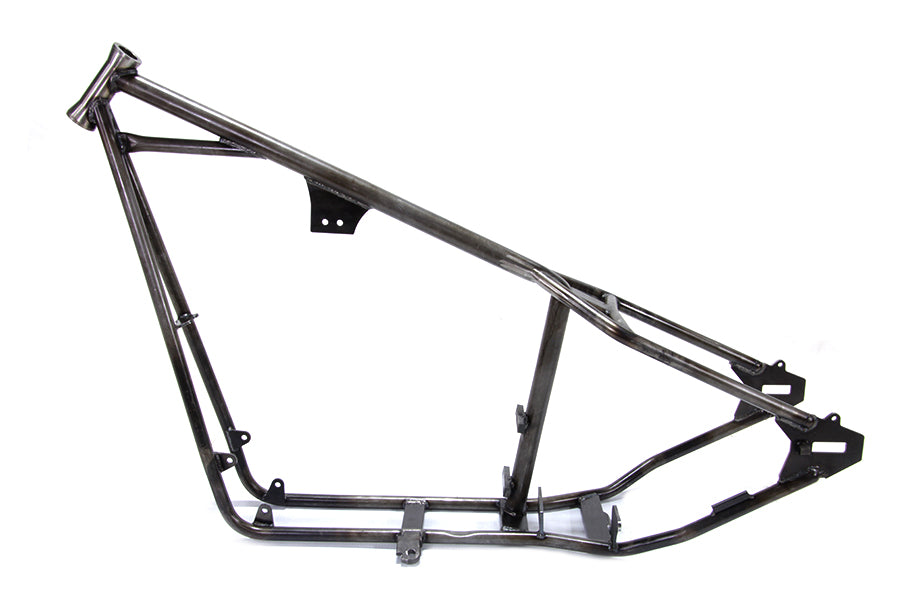

200 XL Rigid Frame 40º Rake For Harley-Davidson Sportster 1986-2003
$859.21
Skip to product information
- 200 XL rigid frame features a 40° rake with a 3" stretch
- Frame will accept 1" neck cups, Wide Glide fork assembly, stock length kickstand and pin, oil tank and battery box which must be ordered separately
- Includes mounts for stock gas tank
- Accepts right side drive transmission and is disc brake type
- Frame does not have a cross shaft provision for mechanical brakes, available separately as required
- Suggested to use weld tank mounts to top frame tube, do not drill frame tube
- Top mount extension must be fabricated by builder, not included
- Addition tabs and brackets may be required as build progresses
- Mounts for sissy bar, oil, tank, battery, kickstand and rear fender mounts should be considered in advance before paint and final assembly
- Check drain plug location for cranckase drain, frame cross brace may have to be clearance to allow access to engine drain plug
- Use spacers which have 3/4" flats to fit plates with 9/16" axle hole
- Fits 1986-2003 XL engines (frame can be set up for 1957-1985 type Ironhead motors)
