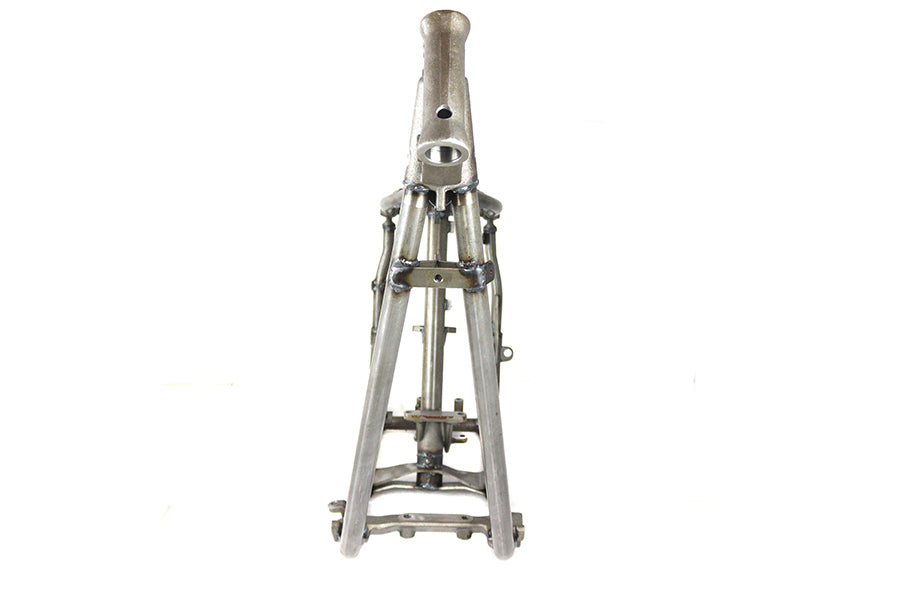

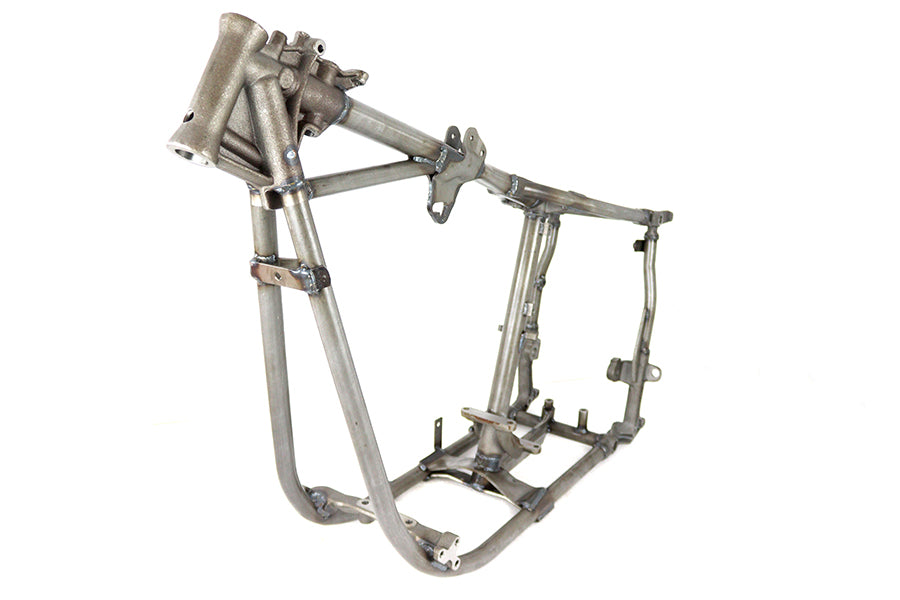

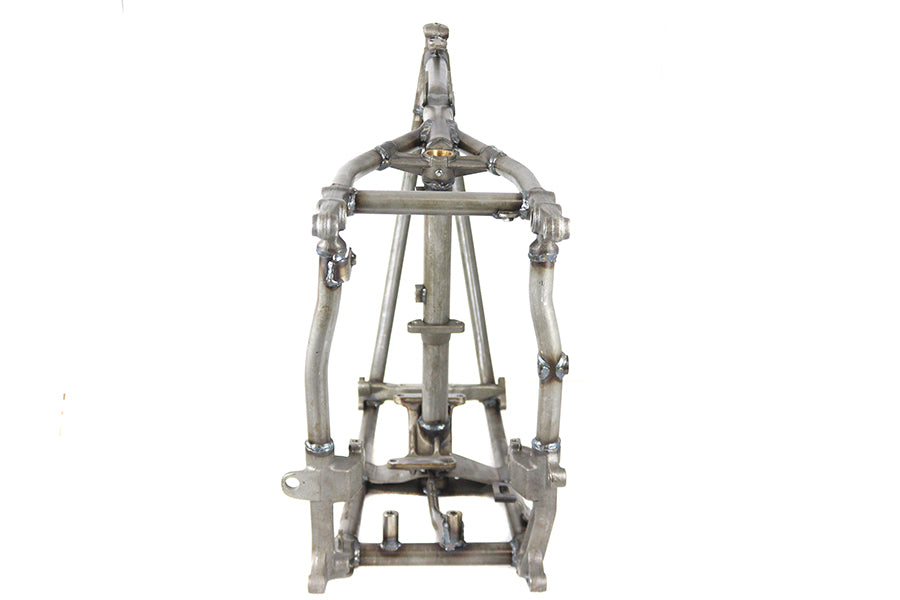

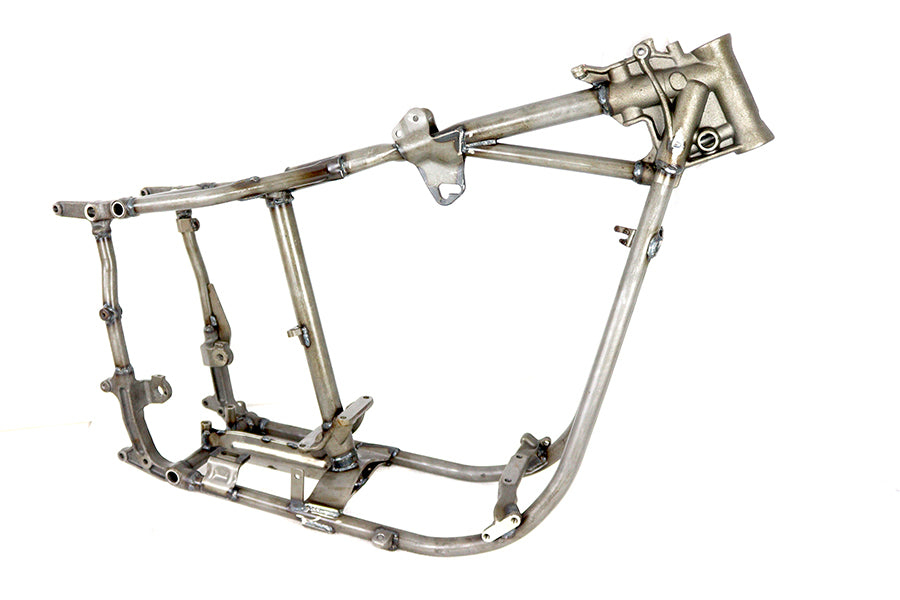

- Replica swingarm frame is our authentic reproduction of FLH style to accept a Panhead or Shovelhead engine, 4-speed transmission, seat post, and accepts a round or square swingarm
- All components are pressed and formed as stock
- Frame details include forged parts as original in neck, motor mounts, front transmission mount plate, top seat post yoke, strut, swingarm pivot mount and footboard mounts as required
- Accepts a 12-volt electric start battery box
- Fork neck without key lock has blank number boss on right side and will accept lock assembly
- Frame will accept round 1958-1972 drum brake or square 1973-1985 swingarm
- Order shock studs separately, recommend using 12 or 13-1/2" shocks
- Frame includes swingarm pin and oil tank bracket
- Rear drum brake models use 13-1/2" shocks and rear disc brake models use 12" shocks
- There are no serial numbers stamped on the replica frame
- We'll supply a Bill of Sale only
- Seat post may require further reaming for proper fit (for this reason frames will not be accepted for return (RGA))
- The size of the blank number pad on the right side ofthe neck measures 3/4" x 3"
- Fits 1965-1984 Fl models
