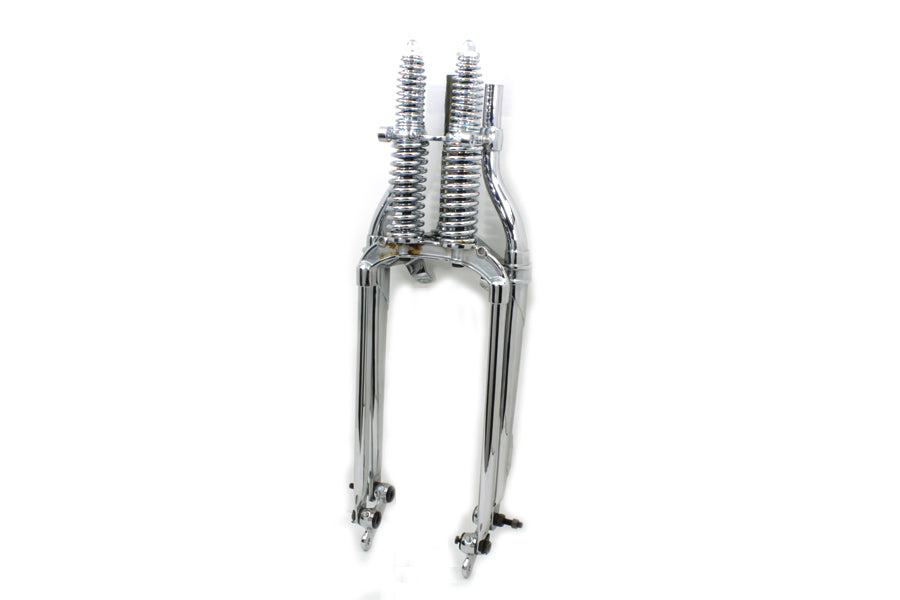

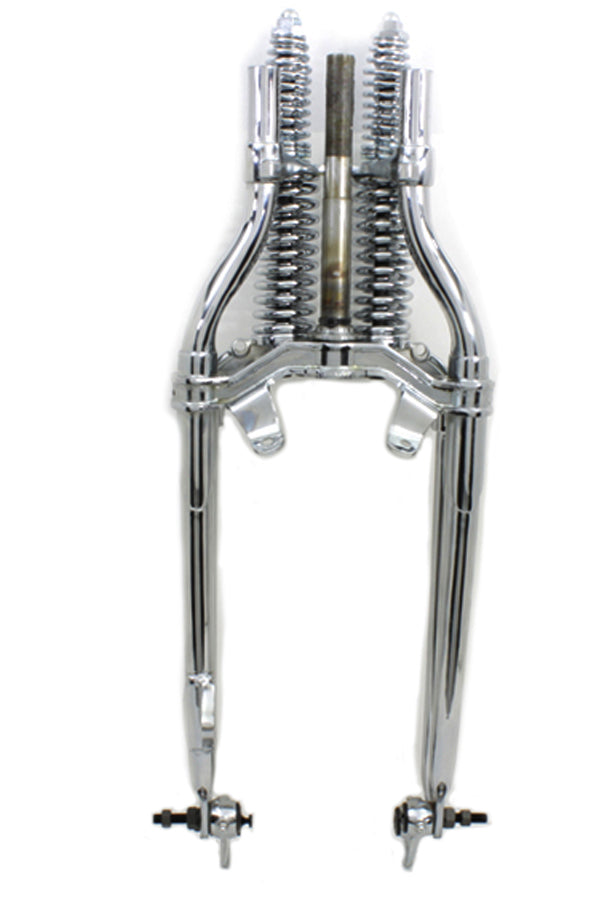

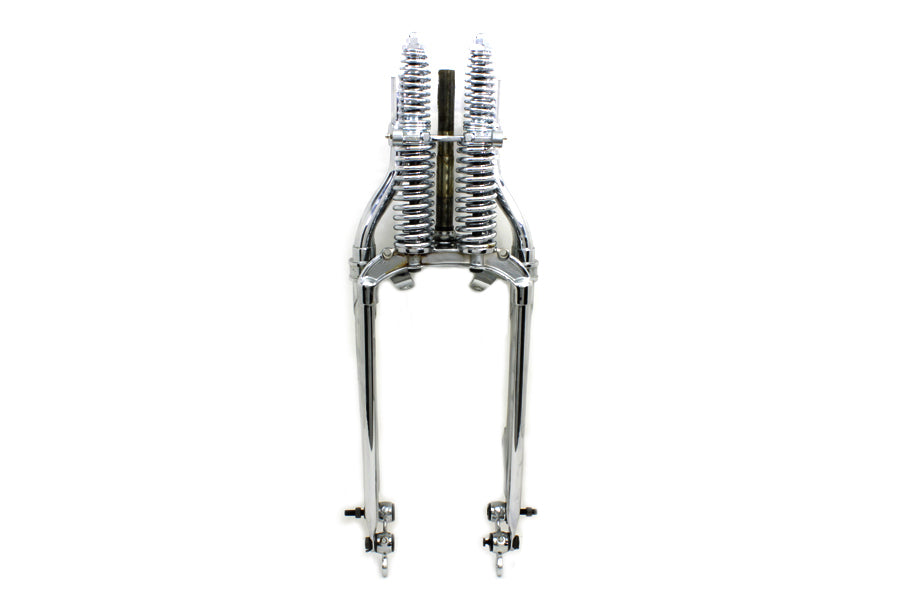

- Unit includes inner and outer springs, chrome front and rear legs, inside rockers for a 3/8" axle and internal brake wheel with all studs and bushings, spring rods with bushings
- For use with a 7/8" neck
- Top clamp, neck races, and cone nut are not included
- Some assembly may be required
- 1" tubes on rear legs are tapped 3/4"-16 to accept threaded riser bushing set, with this installed the builder can use a triple tree without ears and choice of post riser set
- The 45" rockers are mounted in board of the fork legs and accept a 3/8" diameter axle
- The distance between the rockers measure 6.5"
- These forks are replicas of the stock units with electric welded and brazed construction and will accept all original style components and accessories for the detailed replica look
- 18" measurement is from the triple tree where stem and lower bearing sits, to the axle position
- Fits 1936-1952 WL models
