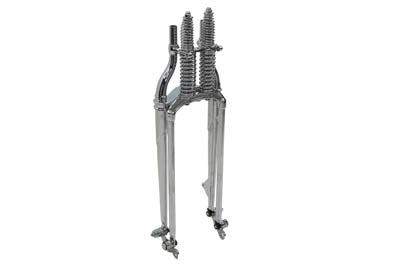

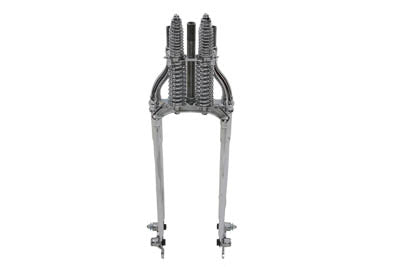

28" Springer Fork Assembly Chrome For Harley-Davidson G 1941-1957
28" Springer Fork Assembly Chrome For Harley-Davidson G 1941-1957
Regular price
$1,460.63 USD
Regular price
Sale price
$1,460.63 USD
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability

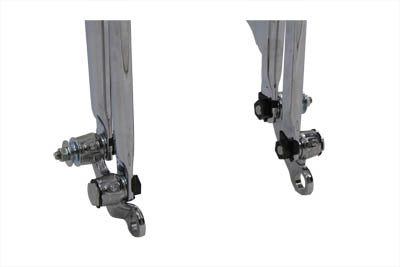

- Unit features chrome front leg, inner and outer springs, chrome rear leg with 7/8" neck stem, outside type rockers for a 5/8" axle with studs and bushings, and spring rods with bushings
- Top clamp, neck races, and cone nut are not included
- 1" tubes on top of rear legs are tapped 3/4"-16 to accept threaded riser bushing set, with this installed the builder can use a triple tree without ears and choice of post riser set
- We measure 28" from the top of the rear leg (tube), to the front axle center line
- These forks are replicas of the stock units with electric welded and brazed construction and will accept all original style components and accessories for the detailed replica look
- For use with interchangeable type 1936-1964 star hub wheels
- Unit is unpolished at the rear fork stem cross plate and at the front spring fork rod forging
- 45" Spring Fork rockers are mounted to the inside of the fork and utilize a 3/8" axle, 45" Servi-Cars, 1947-1957,use Big Twin rockers on the outside of the fork
- How we measure Spring Forks: Measurement is from the triple tree where stem and lower bearing sits, to the axle position. This is the effective length, as it is the legnth from the lower bearing cup on the frame to axle. Installer can slide a pipe or solid bar thru the bearing cups and measure the length that may be needed for the desired frame height
- This Spring Fork assembly accepts a 3/4" axle for custom applications, as rockers are not offset (as on replica Spring Forks)
- 1" stem utilized tapered bearings for ease of installation
- Measurements:
- Axle Diameter: 5/8"
- Neck Stem: 7/8"
- Fits 1941-1957 G models
