  • Replica "HM" 29° Rake Rigid Frame For Harley-Davidson Knucklehead 1941-1946
1 of 4

Replica "HM" 29° Rake Rigid Frame For Harley-Davidson Knucklehead 1941-1946

Regular price
$2,277.74 USD
Regular price
Sale price
$2,277.74 USD

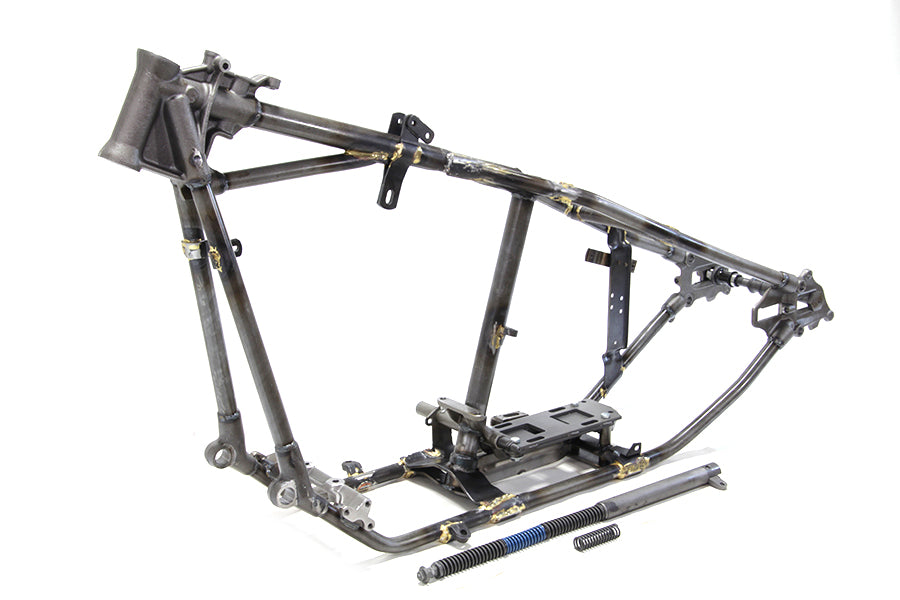

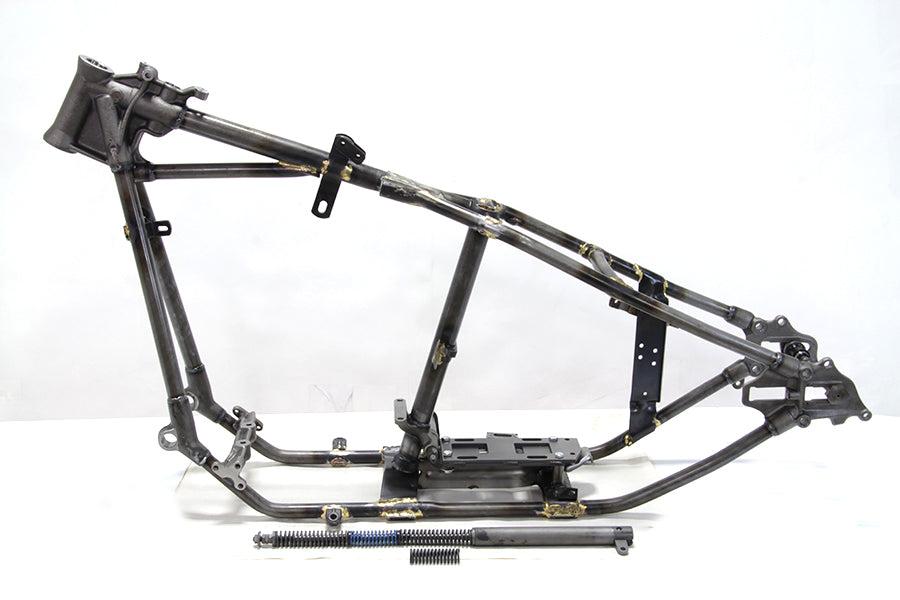

  • Knucklehead rigid frame with a 29° rake neck angle is an authentic reproduction of the factory style featuring 13 brazed joints
  • Front side car loops, seat post mount, rear axle plates are exact shape with forging marks
  • Rear fender crossbar is supported by "saddles" brazed at each end

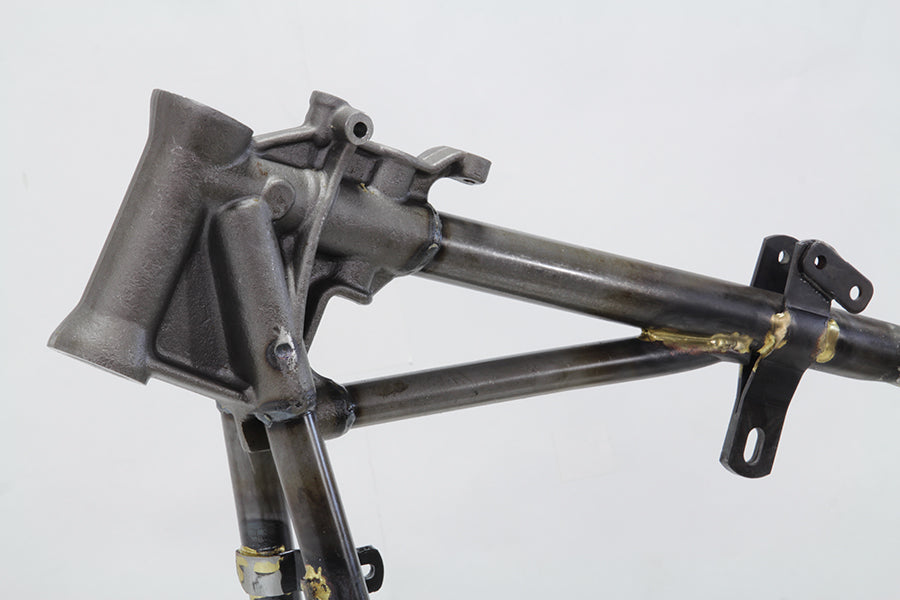

  • The 29° neck angle will accept inline spring forks

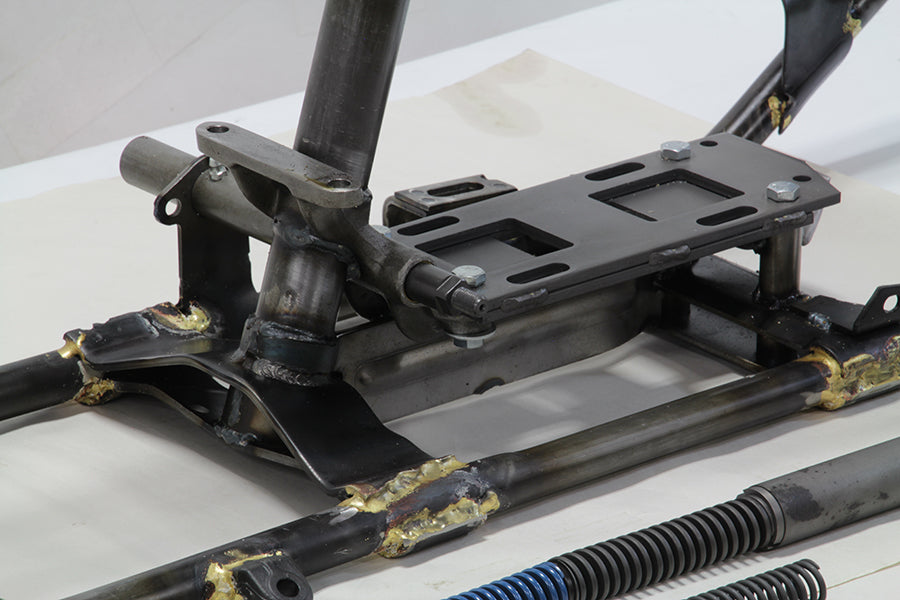

  • Seat post assembly, and transmission mount included, rear axle kit installed
  • Frame requires purchase of clamp on coil bracket kit
  • Manufacturer's Statement of Origin is supplied
  • Knucklehead replica frame 29° includes seat post, trans mount plate and rear axle kit
  • Mount seat "T" to frame before installing gas tanks
  • Place 6320 washer between the tank and frame before mounting
  • New production with 13 joints brazed, just like the original!
  • The tool box is welded to the frame
  • Seat post and cross shaft bushings may require further reaming for proper fit, for this reason, frames will not be accepted for return (RGA)
  • Fits:
    • FL 1941-1946 early 1946
    • U 1941-1946 early 1946
    • EL 1941-1946 early 1946
  • Replaces OEM: 47003-41
